Drilling Machines

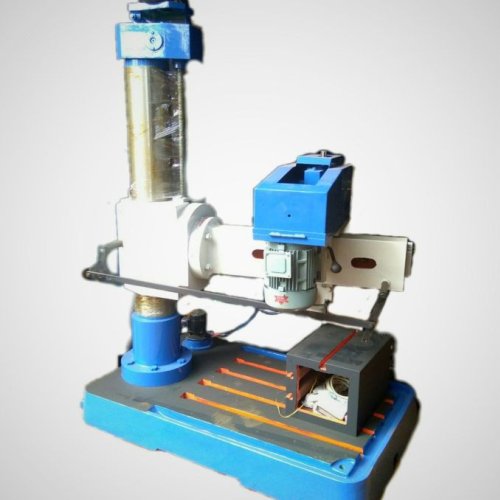

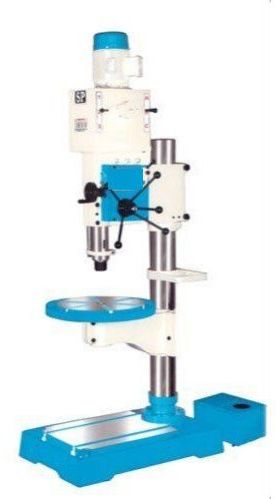

Leading Manufacturers, Wholesaler and Retailer of All Geared Auto Feed Pillar Type Drilling Machine, Cap All Geared Radial Drilling Machine and Fine Feed Radial Drill Machine from Jalgaon.
| Business Type | Manufacturer, Supplier, Retailer |
| Color | Blue and White |
| Type | Pillar Type Drilling Machine |
| Certification | ISO 9001:2008 |
| Country of Origin | India |
| Automatic Grade | Automatic |
| Drilling Capacity in M.S. | 40 |
| Spindle Travel | 250 |
| V Blet | B-33x2 |
| Motor | 2HP/3HP |
| Diameter Of Ram | 78 |
| Product Code | 150 |
| Business Type | Manufacturer, Supplier, Retailer |
| Origin Of Country | India |
| Type | All Geared Radial Drilling Machine |
| Drilling Capacity In M.S. | 40 mm |
| Drilling Capacity In C.I. | 45 mm |
| Tapping In M.S. | M20 |
| Rough Boring In M.S. | 75 mm |
| Spindle Hole Taper | MT-4 |
| Spindle Travel | 250 mm |
| Spindle Speed | 75 - 2000 RPM |
| Diameter Of Ram | 78 mm |
| Spindle Autofeed Ranges | 0.05 - 0.08 Mm/rev |
| Max./Min. Distance Spindle Nose To Base | 850 / 50 mm |
| Max./Min. Distance Spindle Center To Column | 520 / 385 mm |
| Table Size | 305 X 305 mm |
| Max. Drilling Radius | 605 Mm |
| Machine Measurement (L X B X H) | 1350 X 850 X 1825 mm |
| Column Diameter | 150 mm |
| Distance From Spindle Nose To Base | 850 mm |
| Work Table | 305 X 305 X 385 mm |
| Motor | 2 HP (3 Phase) |
| Drill Head Motor | 1.5 HP / 960 RPM |
| Elevating Motor | 0.5 HP / 1440 RPM |
| Standard Accessories | Coolant Tank, Electrical Panel Board, V-belt Drive |
| Product Code | 152 |
| Business Type | Manufacturer, Supplier, Retailer |
| Certification | ISO 9001:2008 |
| Country of Origin | India |
| Type | Radial Drill Machines |
| Drilling Capacity in Mild Steel | 40 mm |
| Drilling Capacity in Cast Iron | 45 mm |
| Tapping Capacity in Mild Steel | M20 |
| Rough Boring Capacity in Mild Steel | 75 mm |
| Spindle Hole Taper | MT-4 |
| Spindle Travel | 250 mm |
| Spindle Speed | 75 - 2000 RPM (8 Steps) |
| Diameter Of Ram | 78 mm |
| Spindle Autofeed Ranges | 0.05 - 0.08 Mm/rev |
| Max Distance Spindle Nose To Base | 850 mm |
| Min Distance Spindle Nose To Base | 50 mm |
| Max Distance Spindle Center To Column | 520 mm |
| Min Distance Spindle Center To Column | 385 mm |
| Table Size | 305 X 305 mm |
| Max Drilling Radius | 605 mm |
| Machine Measurement | 1350 X 850 X 1825 mm |
| Column Diameter | 150 mm |
| Distance From Spindle Nose To Work Table | 305 Mm / 385 mm |
| Drill Head Motor | 1.5 HP / 960 RPM |
| Elevating Motor | 0.5 HP / 1440 RPM |
| Main Motor | 2 HP (3 Phase) |
| Standard Accessories | Coolant Tank, Electrical Panel Board, V-belt Drive |
