2 Lac / piece
| Business Type | Manufacturer, Supplier, Retailer |
| Type | Universal Horizontal Milling Machine |
| Working Surface Frame | 760 X 210 Mm |
| Number Of T-slot | 3 |
| Click to view more | |
Product Details
T-slot Size
40 Mm
Max. Distance From Spindle Center To Table
300 Mm
Longitudinal Feed
380 Mm
Cross Side Feed
125 Mm
Number Of Longitudinal Feed
6
Number Of Spindle Speed
4
Range Of Spindle Speed
65 To 360 RPM
Diameter Of Milling Arbor
25.4 Mm
Milling Collate
E40
Distance Under Over Arm Spindle Center
150 Mm
Main Drive Electric Motor
1/1440 HP/RPM, 635 X 400
Floor Space
1370 Mm
Height Of Machine
1350 Mm
Approx. Weight
550 Kg

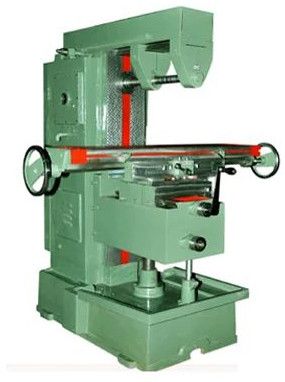

We offer a high-quality Universal Horizontal Milling Machine with a working surface frame of 760 x 210 mm and 3 T-slots each sized at 40 mm. This machine boasts a maximum distance from spindle center to table of 300 mm, longitudinal feed of 380 mm, and cross side feed of 125 mm. With 6 longitudinal feed options and 4 spindle speeds ranging from 65 to 360 RPM, our Universal Horizontal Milling Machine is ideal for manufacturers, suppliers, and retailers looking for precision and efficiency in their operations.
